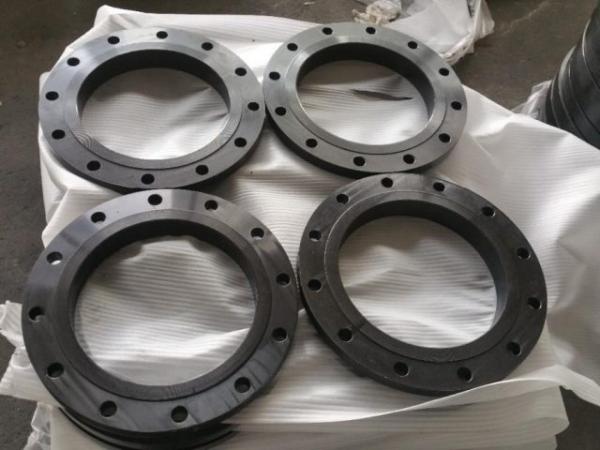

Forged F304 B16.5 150LBS Slip On Flange
Material:SS
Size:1/2″-60″
Type:slip on flange
Certificate:IS09001

Dimensional Tolerances of Slip On Flanges ASME B16.5

Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mmInside Diameter
≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mmDiameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mmOutside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mmDiameter of Counterbore
Same as for Inside DiameterDrilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2.1/2 = 0.8 mm max. | ≥ 3 = 1.6 mm max.Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
